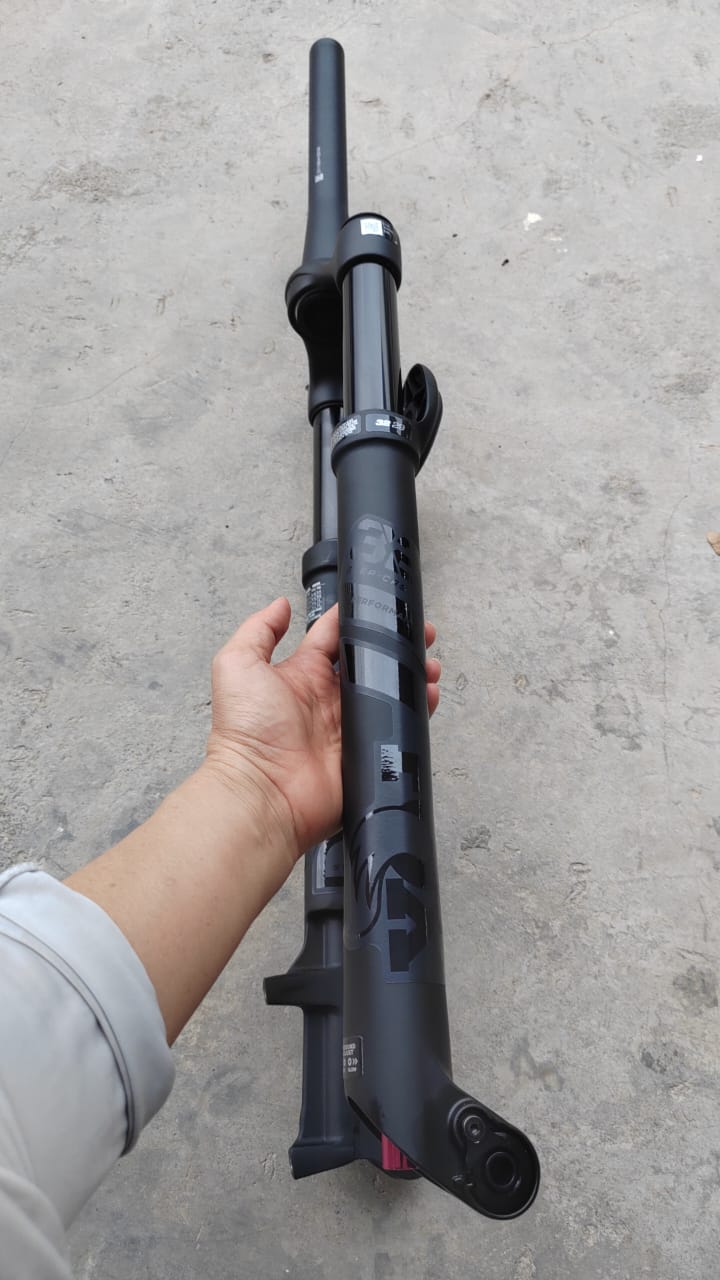

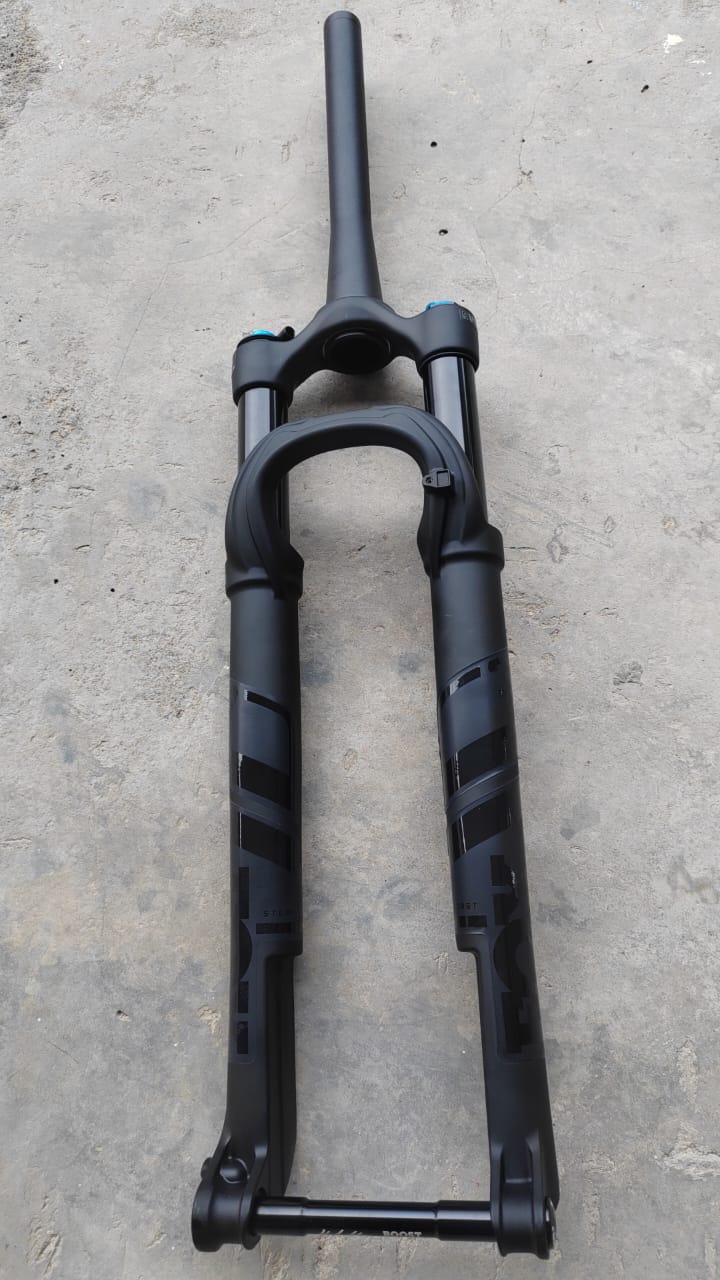

Fox Float 32 Rhythm 29 Boost Suspension Fork

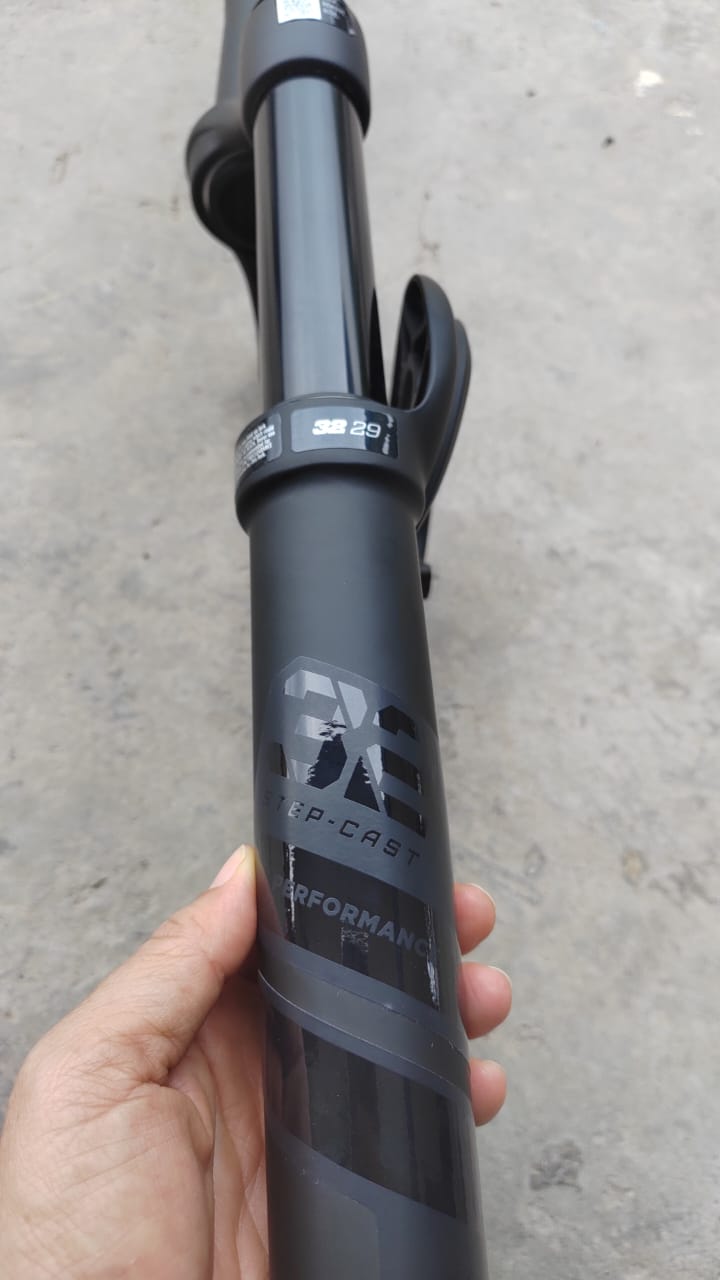

32 Step-Cast – Made for Marathon

40 % stiffer and more grip. As one of the lightest MTB models, the 32 mm Step-Cast suspension fork from FOX is absolutely predestined for use in marathon races. The low weight and increased stiffness are due to the skillful interplay of numerous factors such as the slim, rear-facing reverse arch as well as the revised crown. As a representative of the Performance series, the fork equipped with the proven FLOAT air suspension features black anodized upper tubes made from 7000 aluminum. On the technical side, the reliable GRIP damping ensures an excellent riding experience.

Technical details of the FOX 32 Step-Cast suspension fork

• series: Performance
• suspension: FLOAT EVOL
• damping: GRIP
• Crown Type with integrated adjuster
• Low Speed Compression (LSC): 3 positions (Open, Medium, Firm)
• Low Speed Rebound (LSR): 10 clicks
• steerer: 1 1/8″ – 1 1/2″ diameter (Tapered)
• stanchions: 32 mm diameter, anodized
• installation dimension: 15 x 110 mm Boost (Kabolt SL thru axle)
• weight: approx. 1276 g (Factory, 29″, 165 mm steerer; manufacturer’s specification)

GRIP | To achieve maximum performance, the GRIP damper not only has the same spring-backed and internally floating piston of the higher-class models, but also an updated pressure equalization function. Specially developed openings in the upper area also allow excess oil to be drained, increasing durability and ensuring even damping.

Redesigned Crown | The Zero-Offset crown made of 7000 aluminum is designed for angled upper tubes, so that pre-bending no longer has to be achieved by using additional material. This not only increases stiffness but, in combination with the ultra-lightweight steerer tube, results in a weight saving of 20 grams compared to the previous model.

Rear Arch Matrix | The construction with a rearward-facing arch provides 40 % more stiffness. At the same time, the eye-catching Arch Matrix design reduces the weight.

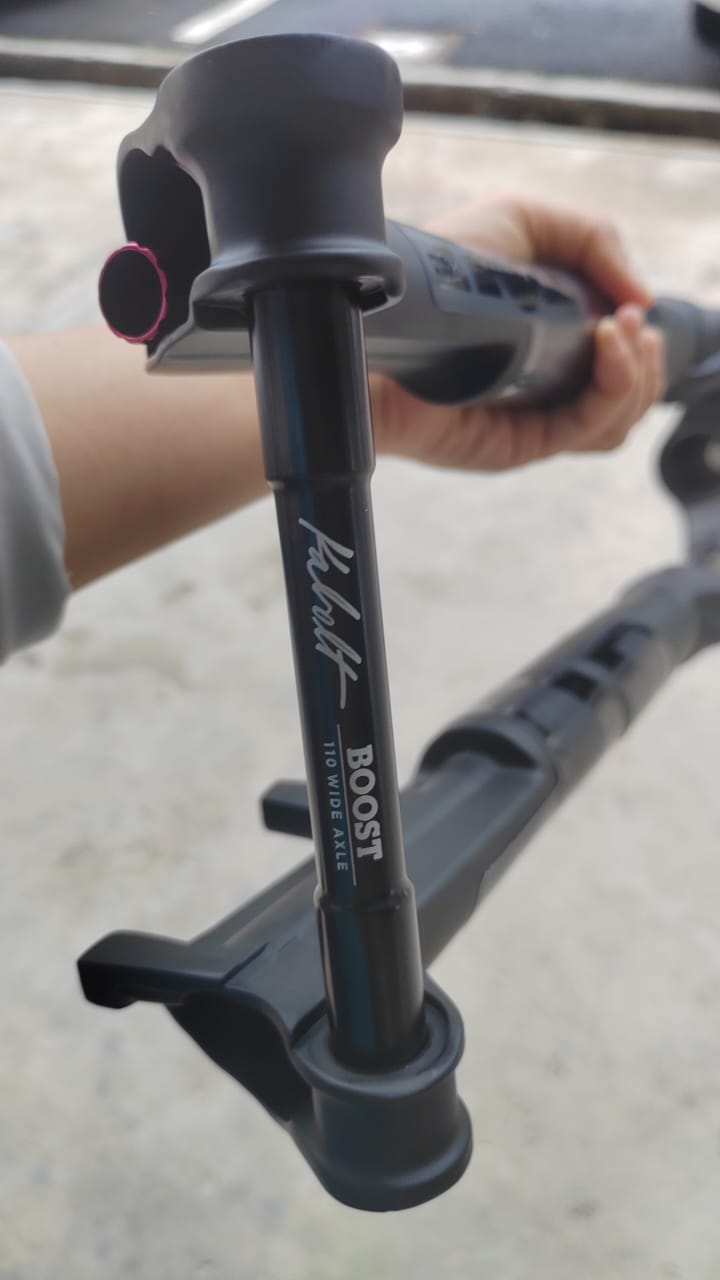

Kabolt SL | Compared to the conventional Kabolt thru axle, the Super Light version saves a further 12 grams. This weight reduction is made possible not only by reducing the flange diameter, but also by eliminating the axle nut.
