TOOPRE OTR36 Crank Spindle Axle Spacer Set

Description

PRODUCT OVERVIEW

The TOOPRE OTR36 Crank Spindle Spacer Set provides four thickness options for spacing adjustment in compatible crank spindle assemblies.

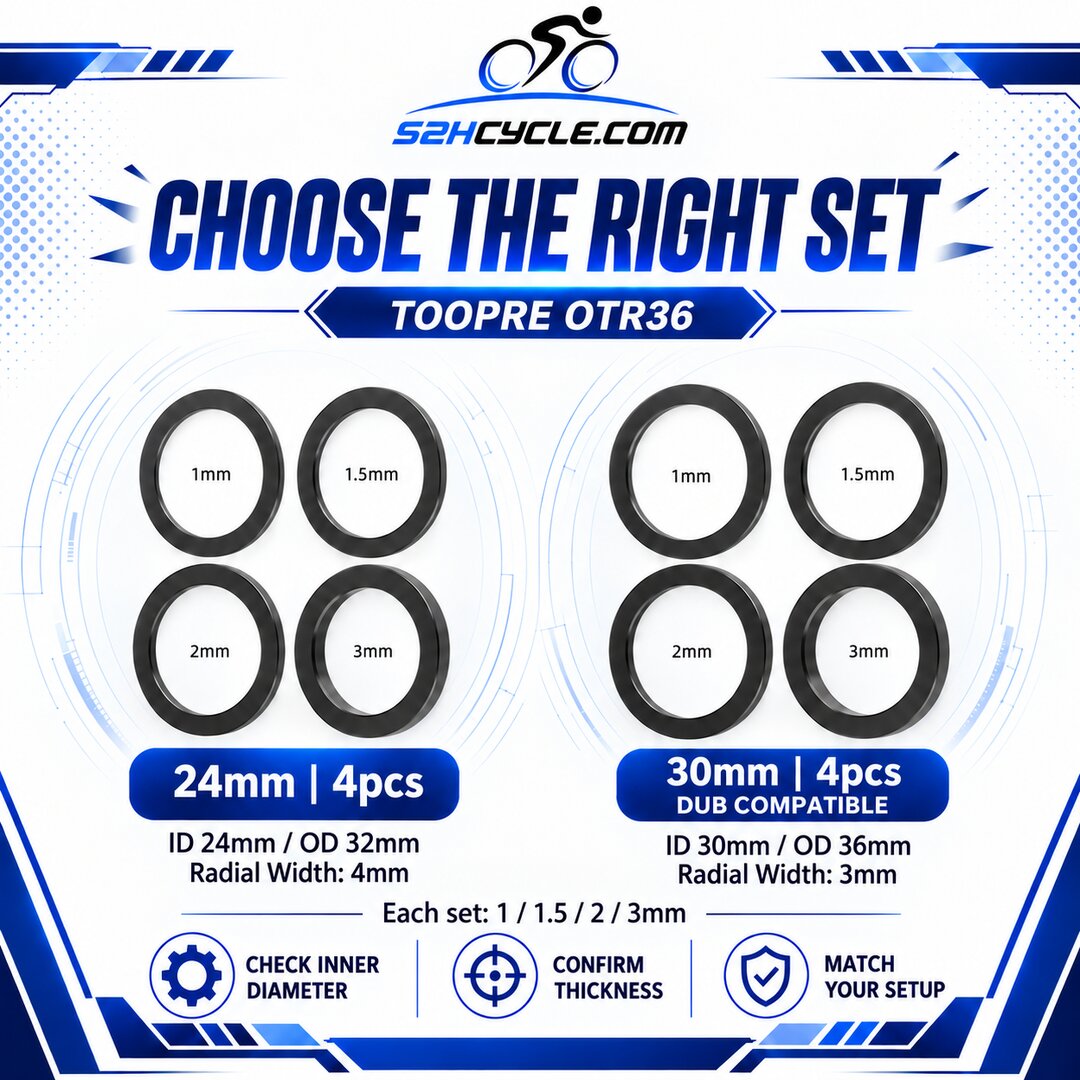

Available sizes:
24mm inner diameter x 32mm outer diameter.
30mm inner diameter x 36mm outer diameter.

The 30mm option is also compatible with SRAM DUB.

Each pack contains one spacer in each thickness: 1mm, 1.5mm, 2mm and 3mm. Select the required spacers according to your crankset, bottom bracket and frame configuration.

KEY FEATURES

• Aluminium alloy construction.
• CNC machined with a black anodized finish.
• 24mm option: 32mm outer diameter and 4mm radial width.
• 30mm option: 36mm outer diameter and 3mm radial width.
• 30mm option compatible with SRAM DUB.
• Four thicknesses per pack: 1mm, 1.5mm, 2mm and 3mm.
• Four pieces per pack, one of each thickness.
• Malaysia ready stock.

RIDELOGIC SYSTEM RELEVANCE

RideLogic Category: C04 DRIVETRAIN.

The OTR36 supports correct spacing and fit at the crank spindle and bottom bracket interface where spacers are required.

Identify the actual fitment requirement, then select the correct inner diameter, outer diameter and thickness. Adding spacers is not a universal solution for crank movement, noise or shifting problems.

SPECIFICATIONS

Brand: TOOPRE
Model: OTR36
Material: Aluminium alloy
Manufacturing: CNC machined
Surface Finish: Anodized
Colour: Black
Thicknesses per Pack: 1mm / 1.5mm / 2mm / 3mm
Quantity: 4 spacers per pack

24mm Option
SKU: 143OTR3624
Inner Diameter: 24mm
Outer Diameter: 32mm
Radial Width: 4mm

30mm Option
SKU: 143OTR3630
Inner Diameter: 30mm
Outer Diameter: 36mm
Radial Width: 3mm
Additional Compatibility: SRAM DUB

Radial width is the width of the ring material from its inner edge to its outer edge. It is separate from spacer thickness.

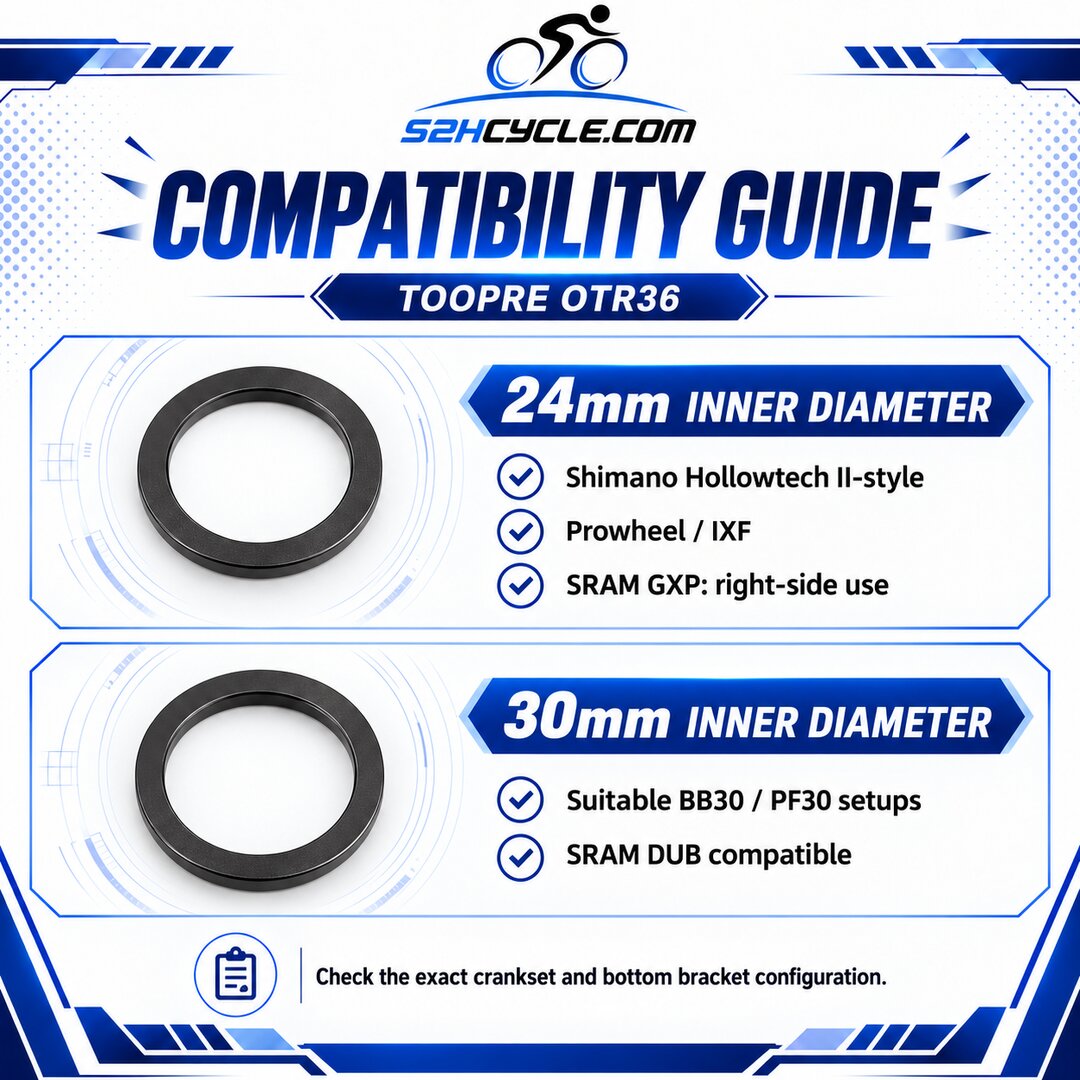

COMPATIBILITY / INTENDED USE

24mm Option

For compatible 24mm hollow crank spindle applications, including suitable Shimano Hollowtech II-style, Prowheel and IXF systems, plus SRAM GXP right-side use.

30mm Option

For compatible 30mm hollow crank spindle applications, including suitable BB30 / PF30 setups. Also compatible with SRAM DUB.

Required thickness and installation position depend on the specific crankset, bottom bracket and frame combination.

WHAT IS INCLUDED

One TOOPRE OTR36 spacer set in the selected size:

• 1mm spacer x 1
• 1.5mm spacer x 1
• 2mm spacer x 1
• 3mm spacer x 1

Total: 4 spacers per pack.

All four spacers in a pack have the selected inner and outer diameters.

Crankset and bottom bracket shown in application photographs are not included.

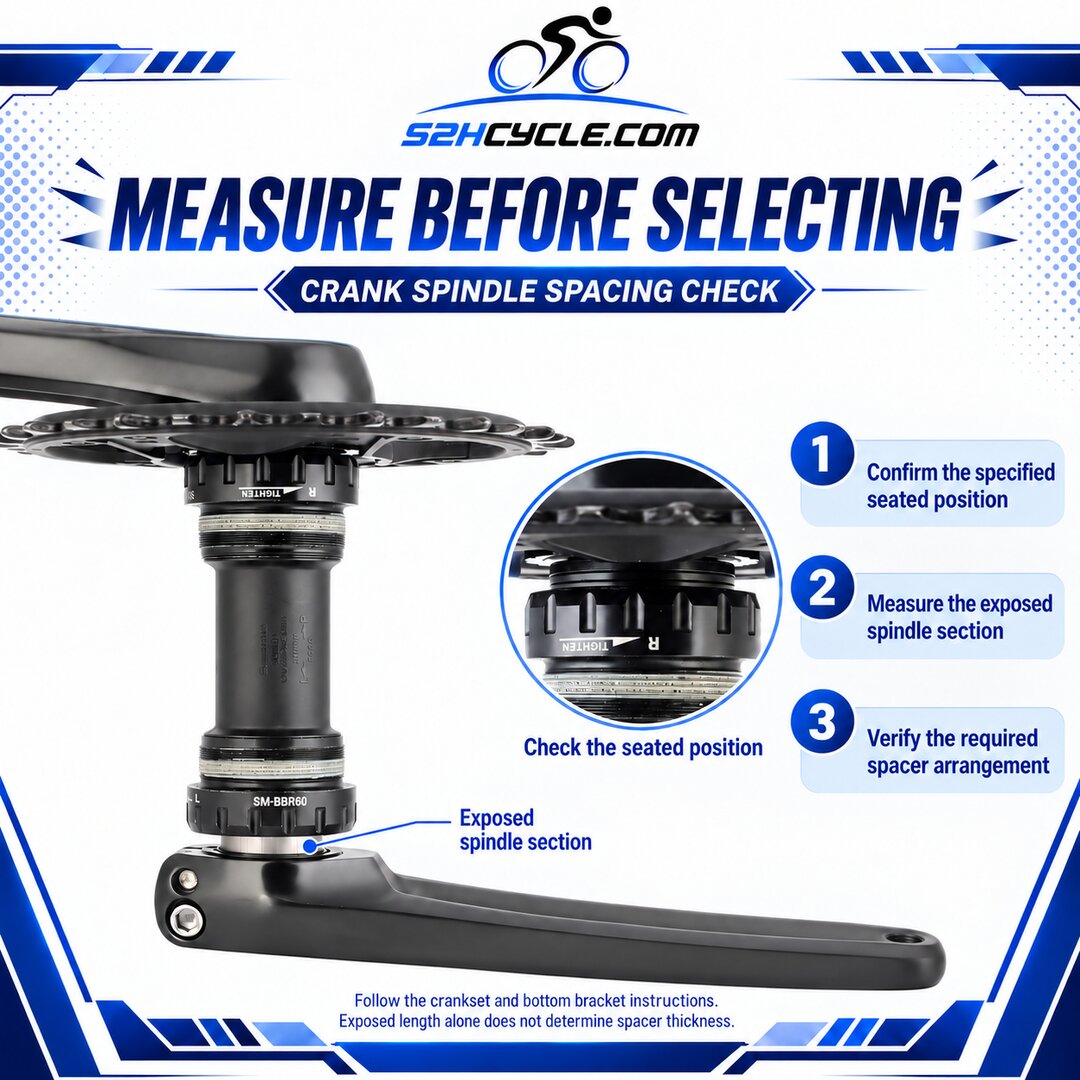

INSTALLATION / SERVICE NOTE

Confirm the spindle diameter, spacer contact dimensions and required thickness before installation. Use a vernier caliper where appropriate and follow your crankset and bottom bracket installation requirements.

Use only the spacers required by your setup. The four supplied thicknesses provide selection options; they are not an instruction to install all four together.

Professional installation is recommended if you are unsure about spacer selection or positioning.

IMPORTANT COMPATIBILITY NOTE

Check your exact crankset and bottom bracket configuration before purchase. Inner diameter, outer diameter, thickness and installation position must suit the actual assembly.
